| Model |
Model |

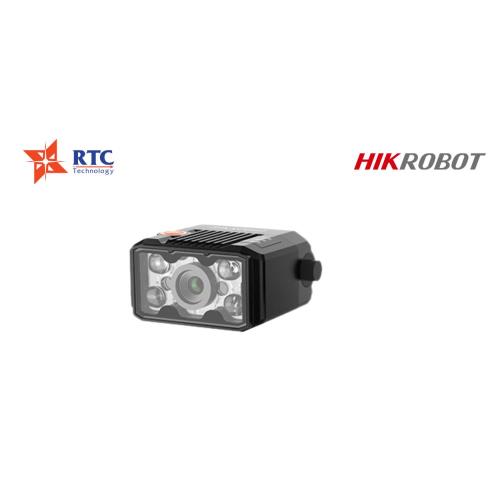

MV-ID2016M-06S-RBN-U |
| Performance |
Symbologies |
1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE
2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate |
60 fps |
| Max. reading speed |
29 codes/sec |
| Sensor type |
CMOS, global shutter |
| Pixel size |
3.45 µm × 3.45 µm |
| Sensor size |
1/2.9" |
| Resolution |
1408 × 1024 |
| Exposure time |
16 μs to 1 sec |
| Gain |
0 dB to 15 dB |
| Mono/color |
Mono |
| Communication protocol |
SmartSDK, USB |
| Optics |
Focal length |
6 mm (0.2") |
| Working distance |
40 mm to 120 mm (1.6" to 4.7"), adjusting focus manually supported |
| Ambient illumination |
0 lux to 50000 lux |
| Light source |
Red LED, blue LED, white LED |
| Aiming system |
Green LED |
| Electrical features |
Data interface |
USB3.0 |
| Digital I/O |
17-pin M12 connector provides data transmission. Device trigger via pressing button on side supported. |
| Power supply |
5 VDC (USB3.0 provides power supply) |
| Max. power consumption |
Approx. 4.6 W@5 VDC (USB3.0 provides power supply) |
| Mechanical |
Indicator |
Power indicator (PWR), network indicator (LNK), and status indicator (STS). |
| Dimension |
46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") |
| Weight |
Approx. 160 g (0.35 lb.) |
| Ingress protection |
IP65 |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F), storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity |
20% to 95% RH, non-condensing |
| General |
Client software |
IDMVS |
| Certification |
CE, FCC, RoHS |
